CMS GLASS MACHINERY

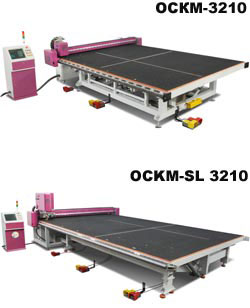

The OCKM series cutting table, a CNC-based glass cutting solution with digital control of accuracy and speed, is designed for Automatic Glass Cutting along straight and curved lines.

Technical Parameters OCKM 3210 (OCKM-S 3210)
--------------------------------------------
Axes - X-Y (X-Y-C)
Glass Size (mm) - 3210x2550
Glass Thickness (mm) - 2-19
Speed - 130 m/min
Accuracy - ± 0.25 mm
Breaking Bars - 2+1
LOW-E Removal - `-`
Width (mm) - 3150
Length (mm) - 4300
Height (mm) - 970
Weight (kg) - 2600
Voltage - 400V 3 NPE AC
Frequency - 50 Hz
Power - 12 kW
Air Pressure - 6 bar
Air Consumption - 25 l/min (50 l/min)

Technical Parameters OCKM-S 3210/V2
------------------------------------
Axes - X-Y-C
Glass Size (mm) - 3210x2550
Glass Thickness (mm) - 2-19
Speed - 130 m/min
Accuracy - ± 0.25 mm
Breaking Bars - 2+1
LOW-E Removal - `-`
Width (mm) - 3150
Length (mm) - 8250
Height (mm) - 970
Weight (kg) - 3900
Voltage - 400V 3 NPE AC
Frequency - 50 Hz
Power - 18 kW
Air Pressure - 6 bar
Air Consumption - 70 l/min

Technical Parameters OCKM-S 6000
---------------------------------
Axes - X-Y-C
Glass Size (mm) - 3210x6000
Glass Thickness (mm) - 2-19
Speed - 130 m/min
Accuracy - ± 0.25 mm
Breaking Bars - 3+2
LOW-E Removal - `-`
Width (mm) - 3550
Length (mm) - 6200
Height (mm) - 970
Weight (kg) - 5500
Voltage - 400V 3 NPE AC
Frequency - 50 Hz
Power - 16 kW
Air Pressure - 6 bar
Air Consumption - 50 l/min

Technical Parameters OCKM-SL 3210
----------------------------------
Axes - X-Y-C
Glass Size (mm) - 3210x2550
Glass Thickness (mm) - 2-19
Speed - 160 m/min
Accuracy - ± 0.25 mm
Breaking Bars - 2+1
LOW-E Removal - `+`
Width (mm) - 4000
Length (mm) - 6400
Height (mm) - 975
Weight (kg) - 4000
Voltage - 400V 3 NPE AC
Frequency - 50 Hz
Power - 28 kW
Air Pressure - 6 bar
Air Consumption - 100 l/min

Machine features
• Stainless steel washing compartment with open top
• Washing unit brushes balanced for high cycle rates (4 pcs.)
• Glass transport speed control unit
• Washing brushes highly sensitive to different glass types (including LOW-E coated glass)
• Uniform brush-to-glass contact force regardless of glass thickness
• Drying fan with heater in an insulated compartment
• Heated stainless steel water tank
• Float system for water tank level control
• Left-to-right operation
• Electrical system compliant with general safety requirements

Technical Specifications
• Glass size: min. 170 x 350 mm; max. 1700 x 3000 mm
• Glass thickness: 2-8 mm
• Max conveyor speed: 8 m / min
• Voltage: 400 V 3 NPE AC
• Frequency: 50 Hz
• Total power: 16 kW
• Length: 8000 mm
• Width: 1000 mm
• Height: 2900 mm
• Weight: 2200 kg
• Noise level: 75 dB (A)

Machine features
• Soundproof stainless steel washing compartment with open top
• Washing unit brushes balanced for high cycle rates (4 pcs.)
• Speed control unit
• Washing brushes highly sensitive to different glass types (coated glass, etc.)
• Drying fan with heater in an insulated compartment
• Heated stainless steel water tank
• Manually moved stops for positioning the spacer frame and keeping it square
• Pressing system with vertical rubber rollers
• Manual adjustment of pressing force to suit different glass sizes
• Electrical system compliant with general safety requirements

Technical Specifications
• Glass size: min. 170 x 350 mm, max. 1700 x 2700 mm
• Voltage: 400 V 3 NPE AC
• Frequency: 50 Hz
• Total power: 17 kW
• Air pressure: 6 bar
• Air consumption: 10 l / min
• Length: 15000 mm
• Width: 1000 mm
• Height: 2880 mm
• Weight: 3000 kg

Technical Parameters OBYM 2000/6
---------------------------------
Number of Brushes - 6
Voltage - 400V 3 NPE AC
Frequency - 50 Hz
Power - 35 kW
Insulated Glass Unit Thickness - 45 mm
Structural Insulated Glass Unit - optional
Pressing Pressure - 6 bar
Air Pressure - 6 bar
Air Consumption - 500 l/min
Glass Size (mm) - 170x350
2000x2700
Working Glass Thickness (mm) - 2-8
Width (mm) - 1800
Length (mm) - 17500
Height (mm) - 3400
Weight (kg) - 5200

Technical Parameters VGPL 2000/6-V1
------------------------------------
Number of Brushes - 6
Voltage - 400V 3 NPE AC
Frequency - 50 Hz
Power - 38 kW
Insulated Glass Unit Thickness - 65 mm
Structural Insulated Glass Unit - `+`
Pressing Pressure - 40 bar
Air Pressure - 6 bar
Air Consumption - 500 l/min
Glass Size (mm) - 170x350
2000x2700
Working Glass Thickness (mm) - 2-8
Width (mm) - 1800
Length (mm) - 17500
Height (mm) - 3400
Weight (kg) - 6000

The Line Consists of:
• Washing Machine, 6 brushes, working height 2000 mm;
• Inspection (Infeed, Outfeed) Stations;
• Hydraulic Panel Press;
• Tilting Station;
• Buffer Station (for version VGPL 2000/6-V3).

Technical Parameters VGPL 2000/6-V2
------------------------------------
Number of Brushes - 6
Voltage - 400V 3 NPE AC
Frequency - 50 Hz
Power - 39 kW
Insulated Glass Unit Thickness - 65 mm
Structural Insulated Glass Unit - `+`
Pressing Pressure - 40 bar
Air Pressure - 6 bar
Air Consumption - 500 l/min
Glass Size (mm) - 170x400
2000x2700
Working Glass Thickness (mm) - 2-19
Width (mm) - 1800
Length (mm) - 17600
Height (mm) - 3400
Weight (kg) - 7300

The station bends the spacer frame to a given shape. It works automatically. Operations performed: profile feed, bending, cutting, joining.

Technical Specifications
Frame Size - A × B
250 mm × 250 mm
2500 mm × 2500 mm
Profile Width - 6 mm – 24 mm
Profile Type - Bendable
Air Pressure - 6 bar (0.6 MPa) – 1/2' Connection
Air Consumption - 30 l/min
Noise Level - 70 dB (A)
Profile Cutting Range - 250 mm – 4000 mm
Number of Magazines - 4
Capacity - 120 pcs / 1 h (1000 mm x 1000 mm rectangular frames)
Power - 4 kW
Voltage - 400 V 3P N PE
Frequency - 50 Hz
Length - 10200 mm
Width - 2000 mm
Height - 2600 mm

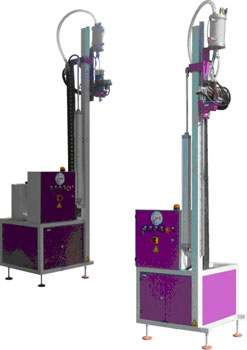

The station automatically fills the spacer frame with desiccant. Filling is done by drilling two sides of the spacer.

Technical Specifications
Frame Size - A x B
250 mm x 250 mm
2500 mm x 2500 mm
Profile Width - 6 mm – 24 mm
Profile Type - Bendable
Desiccant Grain Size - 0.5 mm – 0.8 mm
Air Pressure - 6 bar (0.6 MPa) – 1/2' Connection
Air Consumption - 200 l/min
Noise Level - 70 dB (A)
Profile Cutting Range - 250 mm – 4000 mm
Number of Magazines - 4
Capacity - 120 pcs / 1 h (1000 mm x 1000 mm rectangular frames)
Power - 0.25 kW
Voltage - 200 V 1P N PE
Fuse - 1 x 10 A
Cable Cross-Section - 3 x 2.5
Frequency - 50 Hz
Length - 800 mm
Width - 950 mm
Height - 3050 mm

Technical Specifications FGTF 2512
------------------------------------
Glass Size (mm x mm):
- Min 100x300
- Max 2400x1250
Glass Thickness mm 4-19
Power (kW):
- Feed: 9.3
- Furnace: 280
- Cooling: 200
- Total: 490

Capacity (m² / 1 hour) by Glass thickness (mm):
-4- 67.5
-5- 54
-6- 45
-8- 34
-10- 27
-12- 22.5
-15- 18
-19- 14

Technical Specifications FGTF 3015
------------------------------------
Glass Size (mm x mm):
- Min 100x300
- Max 3000x1500
Glass Thickness mm 4-19
Power (kW):
- Feed: 9.3
- Furnace: 400
- Cooling: 265
- Total: 675

Capacity (m² / 1 hour) by Glass thickness (mm):
-4- 100
-5- 80
-6- 67.5
-8- 50
-10- 40.5
-12- 34
-15- 27
-19- 20

Technical Specifications FGTF 3018
------------------------------------
Glass Size (mm x mm):
- Min 100x300
- Max 3000x1800
Glass Thickness mm 4-19
Power (kW):
- Feed: 9.3
- Furnace: 480
- Cooling: 300
- Total: 790

Capacity (m² / 1 hour) by Glass thickness (mm):
-4- 121.5
-5- 97
-6- 80
-8- 60
-10- 49
-12- 40.5
-15- 32
-19- 25.5

Technical Specifications FGTF 3625
------------------------------------
Glass Size (mm x mm):
- Min 100x300
- Max 3600x2400
Glass Thickness mm 4-19
Power (kW):
- Feed: 9.3
- Furnace: 680
- Cooling: 500
- Total: 1190

Capacity (m² / 1 hour) by Glass thickness (mm):
-4- 170
-5- 136
-6- 113
-8- 85
-10- 68
-12- 57
-15- 45
-19- 36

Technical Specifications FGTF 4821
------------------------------------
Glass Size (mm x mm):
- Min 100x300
- Max 4800x2100
Glass Thickness mm 4-19
Power (kW):
- Feed: 9.3
- Furnace: 720
- Cooling: 425
- Total: 1155

Capacity (m² / 1 hour) by Glass thickness (mm):
-4- 227
-5- 182
-6- 150
-8- 113
-10- 90
-12- 76
-15- 60
-19- 48

Machine Features
• Machine functions controlled by a CNC control unit
• Three-axis glass processing
• Automatic tool change and measuring system
• Perfect operation thanks to external and internal cooling

Technical Specifications
- Axis Travel: x – 4200 mm; y – 1750 mm; z – 245 mm
- Glass Size: 1500 x 3000
- Thickness: 3 mm to 25 mm
- Tool Diameter: 150 mm
- Tool Magazine: 10+10
- Spindle Speed: 15000 rpm
- Spindle Power: 8 kW
- Working Speed: 0-24 m/min
- Length: 5000 mm
- Width: 3100 mm
- Height: 2000 mm
- Voltage: 400 V 3 NPE AC
- Weight: 4700 kg
- Total Power: 26 kW
